Integrated Optical Modules
Integrated optical modules provide defined optical functionality within a larger optical instrument or system.
Astravon supports the development of integrated optical modules in which optical performance, mechanical integration, and interface definition are addressed together at subsystem level.
These modules are designed for integration into higher-level optical instruments rather than operation as standalone systems.
Integrated Optical Modules at Subsystem Level
Astravon supports optical modules that deliver a defined optical function within a larger instrument architecture.
Development typically addresses:
- Optical function and performance allocation at module level
- Mechanical structure supporting optical stability
- Defined optical and mechanical interfaces
- Alignment strategies appropriate to subsystem integration
- Documentation supporting downstream system integration
The resulting module is delivered as a functionally complete optical subsystem ready for integration.
Typical Integrated Optical Module Types
Integrated optical modules can take multiple forms depending on system architecture.

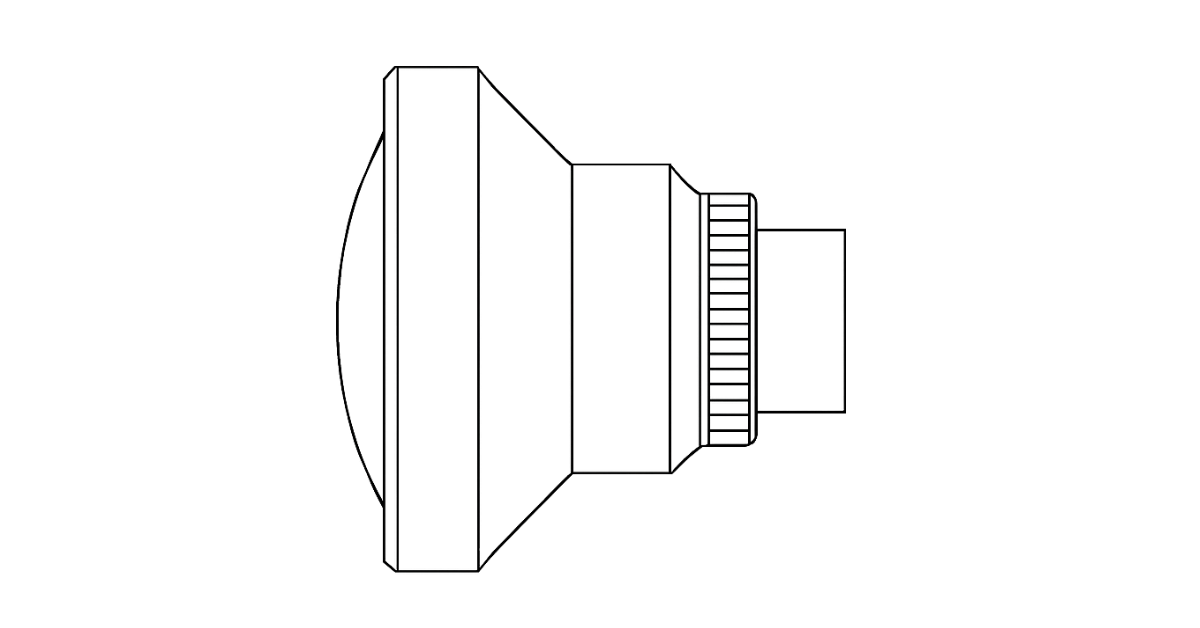

Imaging Optical Modules
Optical modules providing image formation or relay functions, typically interfacing with detectors or downstream optical elements.
Spectrometer Front-End Modules
Optical front-end modules for spectroscopic systems, including light collection, conditioning, or relay optics to spectral dispersion.
Relay Optics Modules
Intermediate optical modules designed to transfer or reformat optical paths between system elements while maintaining defined optical geometry.
Sensor Interface Modules
Optical modules coupling incoming optical signals to detectors or sensors with controlled geometry and alignment.
Custom Optical Modules
Application-specific optical modules developed to meet defined functional, interface, and integration requirements.
Integration Scope
Integrated optical modules are delivered as subsystem-level assemblies.
System-level performance allocation, environmental qualification, and final instrument verification remain outside the module scope unless explicitly defined.
This approach supports clear responsibility boundaries and predictable integration into higher-level optical systems.
Typical Considerations
Depending on the application, development of integrated optical modules may address:
- Optical performance allocation at module level
- Mechanical interface definition
- Thermal stability and structural behaviour
- Alignment repeatability within defined tolerances
- Documentation supporting system-level integration
Integrated optical modules provide defined optical functionality within larger instrument architectures.
